GOPHERT CPS-3205 II power supply
Table of Contents
1. Hardware
The GOPHERT CPS-3205 II power supply is a very cheap lab power supply that can be purchased for example on aliexpress. It has two boards inside:
- a main power board
- a smaller controller board screwed in front
Both boards are connected using a short bundle of wires with pins labeled on both ends. The wire is marked as SW19 on the controller board.

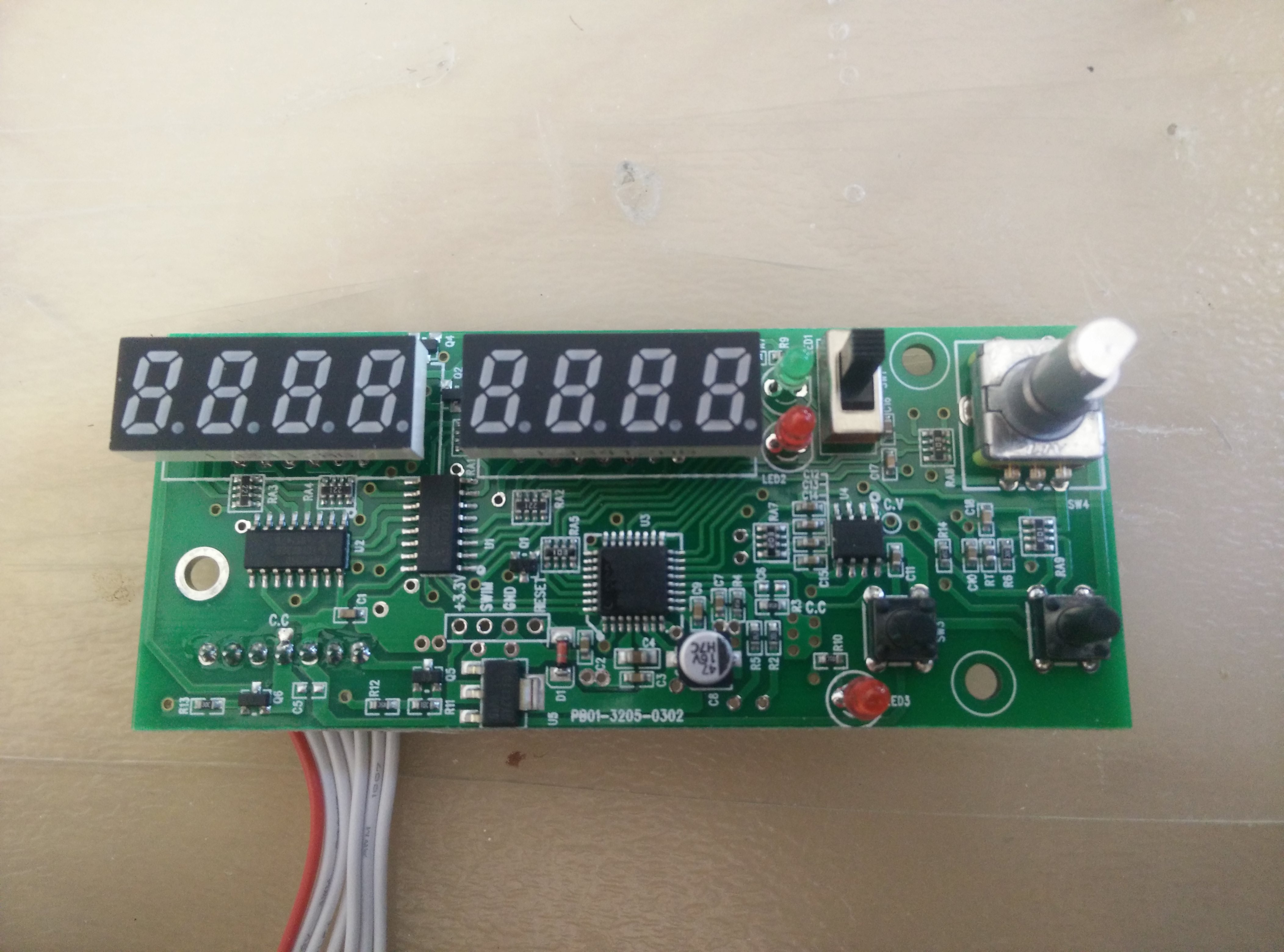

Main chips on the controller board are:
| Designation | Label | Notes |
|---|---|---|
| U1, U2 | 74HC595D | 8-bit shift registers |
| U3 | STM8S105K4T6C | |
| U4 | LM358A | Dual opamp |
| U5 | LD1117AG-33 |

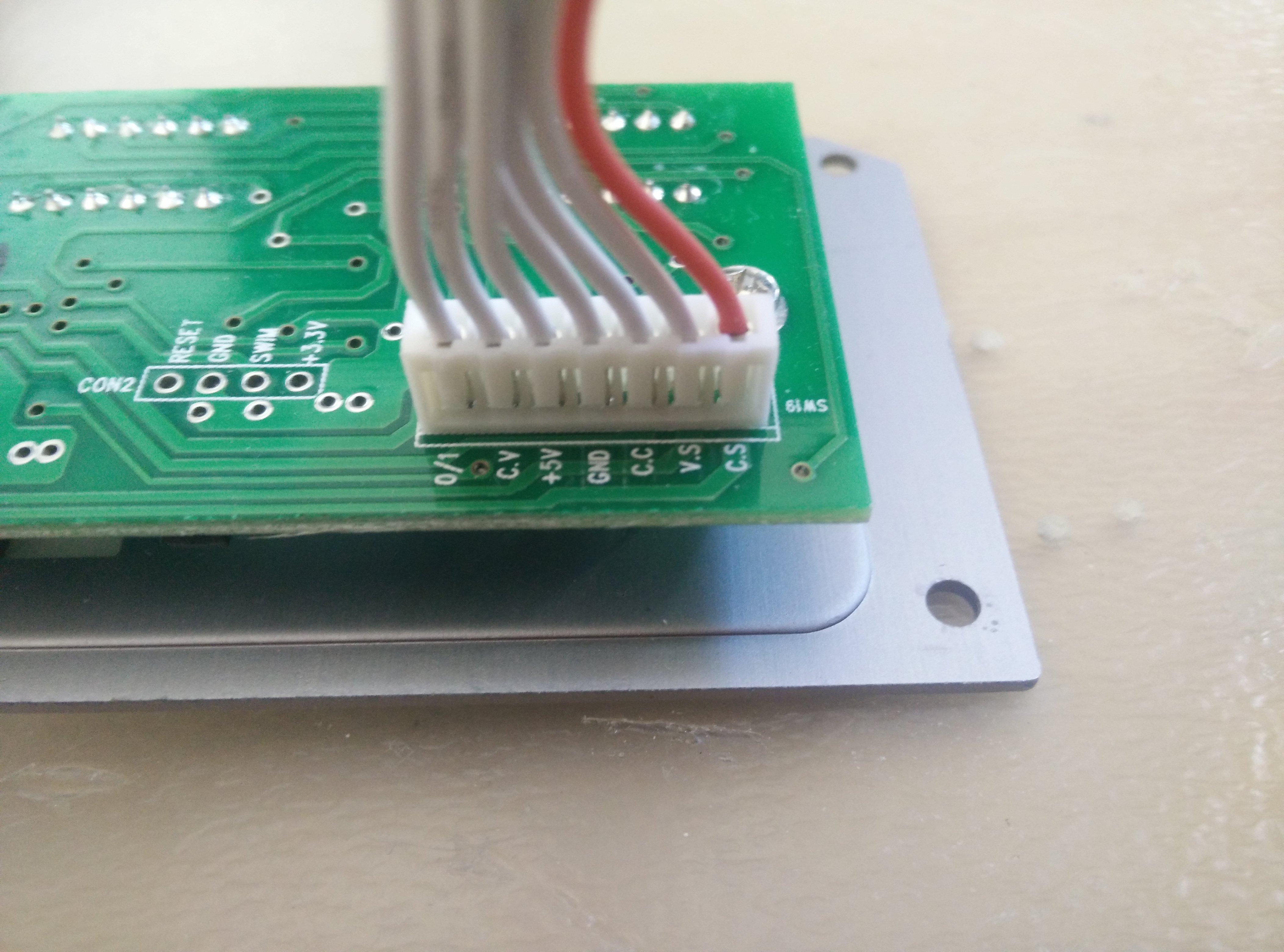

Connectors visible on the back of the controller board:
1.0.1. SW19 connector
| Pin | Label | Purpose | Notes |
|---|---|---|---|
| 1 | C.S | Current sense | See below for input voltage ranges |
| 2 | V.S | Voltage sense | See below for input voltage ranges |
| 3 | C.C | Constant current set | See below for output voltage ranges |
| 4 | GND | ||
| 5 | +5V | Power for controller board | |
| 6 | C.V | Voltage set | 05.00 V set -> 0.534V, 15.6 V set -> 1.563 V, 32.3 V set -> 3.17, 0.1 of output voltage |
| 7 | 0/1 | Output switch | HIGH -> Output OFF, LOW -> Output ON |
The current settings on the power supply maps to the voltage on the C.C pin in the following way:
| Setting [A] | C.C voltage [V] |
|---|---|
| 0 (MIN) | 0.022 |
| 0.5 | 0.640 |
| 1 | 0.914 |
| 1.5 | 1.188 |
| 2 | 1.462 |
| 2.5 | 1.737 |
| 3 | 2.00 |
| 3.5 | 2.27 |
| 4 | 2.55 |
| 4.5 | 2.82 |
| 5 | 3.10 |
| 5.1 (MAX) | 3.15 |
After running a simple linear regression using http://www.xuru.org/rt/LR.asp#CopyPaste on this data we find out that the relationship between the display and driving voltage is:
C.C voltage [V] = 0.573 * Current [A] + 0.264
Corresponding table mapping the voltage seen on the C.S pin and the current displayed is provided below:
| C.S voltage [V] | Current display [A] |
|---|---|
| 1.055 | 0.004 |
| 1.131 | 0.049 |
| 1.218 | 0.102 |
| 1.385 | 0.202 |
| 1.579 | 0.318 |
| 1.747 | 0.418 |
| 1.908 | 0.513 |
| 2.11 | 0.636 |
| 2.23 | 0.705 |
| 2.42 | 0.816 |
| 2.58 | 0.912 |
| 2.78 | 1.031 |
| 3.06 | 1.195 |
| 3.38 | 1.384 |
| 3.78 | 1.619 |
| 4.09 | 1.803 |
| 4.43 | 2.008 |
| 4.66 | 2.145 |
| 4.81 | 2.235 |
| 4.88 | 2.275 |
I measured only up to 4.88 as I was the top I could reach with a simple potentiometer connected to a 5V rail. But this should be enough to calculate a linear regression:
Current display [A] = 0.593 * C.S voltage [V] - 0.619
The same for mappinv between the voltage on the V.S pin and the voltage diplayed:
| V.S voltage [V] | Voltage display [V] |
|---|---|
| 0.156 | 0.21 |
| 0.192 | 0.27 |
| 0.301 | 0.46 |
| 0.417 | 0.66 |
| 0.516 | 0.84 |
| 0.607 | 1.00 |
| 0.726 | 1.21 |
| 0.859 | 1.44 |
| 0.919 | 1.54 |
| 1.055 | 1.78 |
| 1.138 | 1.92 |
| 1.208 | 2.05 |
| 1.273 | 2.17 |
| 1.332 | 2.27 |
| 1.397 | 2.39 |
| 1.476 | 2.52 |
| 1.574 | 2.69 |
| 1.658 | 2.85 |
| 1.738 | 2.99 |
| 1.816 | 3.11 |
| 1.896 | 3.25 |
| 2.03 | 3.49 |
| 2.10 | 3.61 |
| 2.17 | 3.72 |
| 2.21 | 3.8 |
| 2.30 | 3.96 |
| 2.39 | 4.13 |
| 2.51 | 4.33 |
| 2.62 | 4.53 |
| 2.70 | 4.67 |
| 2.80 | 4.85 |
| 2.90 | 5.03 |
| 3.00 | 5.20 |
| 3.11 | 5.40 |
| 3.20 | 5.55 |
| 3.30 | 5.72 |
| 3.41 | 5.91 |
| 3.51 | 6.10 |
| 3.58 | 6.22 |
| 3.70 | 6.43 |
| 3.80 | 6.60 |
| 3.99 | 6.94 |
| 4.11 | 7.16 |
| 4.20 | 7.31 |
| 4.31 | 7.50 |
| 4.43 | 7.72 |
| 4.50 | 7.84 |
| 4.64 | 8.08 |
| 4.71 | 8.20 |
| 4.80 | 8.37 |
| 4.90 | 8.54 |
| 4.91 | 8.56 |
Voltage display [V] = 1.757238498 * V.S Voltage [V] - 0.0723
1.0.2. CON2 connector
The second unpopulated connector on the board is used for programming of the microcontroller.
| Pin | Label | Notes |
|---|---|---|
| 1 | RESET | |
| 2 | GND | |
| 3 | SWIM | |
| 4 | +3.3V | Power output from internal voltage regulator. Board needs to be powered using +5V input. |
I tried to read the firmware with an STLINKv2 interface but unfortunately the readout is locked.
